Mastering Thermal Management in PCB Design: Proven Strategies for Optimal Performance

Effective thermal management in printed circuit board (PCB) design is critical to ensuring the reliability, efficiency, and longevity of electronic devices. As components shrink and power demands rise, managing heat dissipation becomes a pivotal challenge for PCB designers. Poor thermal management can lead to overheating, degraded performance and premature component failure. Drawing on industry-standard practices and real-world applications, this guide explores why thermal management is essential, how heat impacts power and RF circuits, and the top strategies PCB designers should prioritize to optimize thermal performance.

Why Thermal Management Is Critical in PCB Design

Thermal management is a non-negotiable aspect of PCB design that directly affects device performance, safety and durability. Excess heat can degrade components, cause material failures and compromise system reliability, leading to costly consequences. For instance, overheating can shift component tolerances, weaken solder joints due to thermal expansion or trigger thermal runaway, risking complete system failure. In high-stakes applications like medical devices, automotive electronics or aerospace systems, poor thermal management can lead to safety hazards, regulatory non-compliance or expensive recalls. Even in consumer electronics, such as smartphones or laptops, inadequate cooling causes thermal throttling, reduced battery life and diminished user experience. According to IPC standards (e.g., IPC-2221), effective thermal design ensures components operate within safe temperature ranges, enhancing reliability and meeting user expectations for robust, long-lasting devices. By prioritizing thermal management, designers safeguard both functionality and reputation in competitive markets.

Heat poses distinct challenges to power and RF circuits, which are integral to modern PCBs:

  • Power Circuits: Power circuits, such as voltage regulators, DC-DC converters, or power amplifiers, handle high currents, generating significant heat. Excessive temperatures degrade semiconductor materials, increasing resistance and reducing efficiency, which can cause voltage drops or thermal runaway—a cascading failure where rising heat worsens performance. For example, MOSFETs may suffer gate oxide breakdown at high temperatures, leading to permanent damage. Heat also accelerates electromigration in high-current traces, thinning conductive paths and risking open circuits, as noted in studies on power electronics reliability (e.g., IEEE reliability standards).
  • RF Circuits: RF circuits, used in wireless systems like 5G transceivers or Wi-Fi modules, are highly sensitive to thermal effects. Elevated temperatures alter substrate dielectric properties, shifting transmission line impedance and causing signal mismatches, which degrade signal integrity and increase noise. For instance, RF amplifiers may experience gain reduction or frequency drift, impacting performance in radar or communication systems. Thermal stress can also cause micro-cracks in solder joints, disrupting high-frequency signal paths. According to RF design guidelines (e.g., ARRL RF engineering resources), maintaining stable temperatures is critical for consistent RF performance.

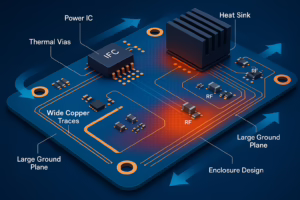

Top Strategies for Thermal Management in PCB Design

Based on industry best practices and practical experience, here are eight proven methods to address thermal challenges in PCB design:

  1. Material Selection
    • Choose substrates with high thermal conductivity, such as metal-core PCBs (e.g., aluminum-backed) for high-power applications or enhanced FR-4 for general use. These materials efficiently dissipate heat, critical for power circuits.
    • Use thicker copper layers (e.g., 2 oz or higher) to reduce resistive heating in high-current traces, per IPC-2152 standards.
  2. Component Placement Optimization
    • Strategically place heat-generating components (e.g., CPUs, RF amplifiers) away from sensitive RF or analog components to minimize thermal interference. Ensure adequate spacing to prevent hot spots.
    • Group components by thermal profile to streamline cooling, improving efficiency in high-power designs.
  3. Thermal Vias
    • Implement thermal vias—plated-through holes filled with conductive material—to transfer heat from hot components to ground planes or heat sinks. These are highly effective for power circuits, reducing localized heating.
    • Example: Place thermal vias under power ICs to channel heat to a copper plane, as recommended in Altium’s thermal design guidelines.
  4. Heat Sinks and Thermal Pads
    • Attach heat sinks to high-power components like voltage regulators or RF amplifiers to increase heat dissipation. Use thermal interface materials (TIMs), such as thermal pads or paste, to minimize thermal resistance.
    • Thermal pads provide insulation and efficient heat transfer, protecting RF circuits from electrical interference.
  5. Copper Planes and Traces
    • Dedicate large copper planes (e.g., ground or power planes) to act as heat spreaders, reducing hot spots in power circuits.
    • Design wider traces for high-current paths to lower resistance and heat generation, critical for power circuit reliability.
  6. Active and Passive Cooling Solutions
    • Use passive cooling (e.g., heat sinks, natural convection) for cost-effective solutions in low- to medium-power systems.
    • Implement active cooling (e.g., fans, liquid cooling) for high-performance applications like RF base stations or servers, where heat loads are significant.
  7. Simulation and Analysis
    • Leverage thermal simulation tools like ANSYS, Altium Designer or Cadence to model heat flow and identify hot spots before fabrication. This is crucial for RF circuits to ensure signal integrity.
    • Validate designs with infrared thermal imaging or temperature sensors during prototyping, as recommended by IPC-2221.
  8. Ventilation and Enclosure Design
    • Align PCB layouts with enclosure ventilation paths to enhance airflow over heat-generating components.
    • Use thermally conductive enclosures (e.g., aluminum) to aid dissipation, especially for power-heavy designs.

Additional Methods for Thermal Management in Electronics

For a holistic approach, consider these broader strategies:

  • Power Optimization: Use low-power components or efficient ICs to minimize heat in power circuits, reducing thermal stress.
  • Duty Cycle Management: Apply pulse-width modulation (PWM) to lower average power dissipation, especially in power amplifiers.
  • Environmental Considerations: Design for worst-case ambient conditions (e.g., high temperatures) to ensure cooling adequacy, per IPC standards.
  • Advanced Cooling Technologies: Explore heat pipes or phase-change materials for high-performance RF or power systems, as seen in cutting-edge applications.

Best Practices for Effective Thermal Management

  • Iterative Design: Simulate early and refine layouts to address thermal risks proactively.
  • Collaboration: Partner with mechanical engineers to align PCB and enclosure designs, per industry workflows.
  • Testing: Conduct thermal stress testing with tools like FLIR cameras to validate real-world performance.
  • Compliance: Adhere to IPC-2152 and IPC-2221 standards for thermal and current-carrying reliability.

Conclusion

Thermal management in PCB design is essential to prevent heat-related degradation in power and RF circuits, ensuring reliable, high-performance electronics. By prioritizing strategies like thermal simulation, material selection and component placement, designers can mitigate risks and deliver robust PCBs. Always consult thermal management experts for complex designs to ensure compliance and performance. To learn more about how ACDi’s team of PCB Designers can help you with your layout, contact us to set up a consultation.
