Conformal Coating for PCBs: Types, Methods and Design Tips

A printed circuit board (PCB) assembly can pass every test on the bench and still fail in the field once humidity, condensation, dust, fuel vapors or salt air reach the circuitry. Conformal coating is the thin protective film applied over a finished assembly to prevent exactly that. Applied well, it extends service life, reduces leakage and corrosion failures and gives high-reliability programs a dependable layer of environmental protection.

This guide covers when a board needs coating, how the main coating chemistries compare, how coating is applied and inspected and which design decisions keep cost and rework low.

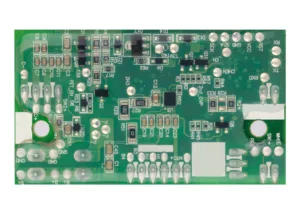

What Is Conformal Coating and When Does a PCB Need It?

Conformal coating is a polymer film, typically 25 to 200 microns thick, that follows the contours of the assembled board. It insulates conductors, seals out moisture and contaminants, and helps protect solder joints and fine-pitch leads from corrosion and dendritic growth.

Coating is a strong candidate for assemblies that will see:

Moisture and condensation — outdoor enclosures, vehicles, marine environments and any product that cycles between hot and cold.
Chemical exposure — fuels, hydraulic fluids, cleaning agents and industrial atmospheres.
Contamination — dust, salt fog, fungus and conductive debris.
Vibration and thermal cycling — aerospace, defense and industrial equipment where coating flexibility and adhesion help maintain environmental protection as assemblies experience mechanical and thermal stress.
Tight conductor spacing — fine-pitch and high-voltage designs, where a coating raises the margin against leakage and arcing.

Conformal coating is frequently specified for high-reliability applications, including assemblies built to IPC Class 3 acceptance criteria. However, coating requirements are determined by the product’s operating environment and customer specifications and should be clearly documented in the assembly drawings or manufacturing instructions.

Conformal Coating Types Compared

IPC-CC-830 classifies conformal coatings by chemistry. Each type offers a different balance of protection, flexibility and reworkability. Acrylic and urethane are by far the most widely used on production assemblies, so they lead the comparison below. Silicone and epoxy fill narrower needs, and parylene is the specialty option for applications where weight and coverage matter most.

Type	Code	Strengths	Trade-offs
Acrylic	AR	Easy to apply, fast cure, good moisture resistance, simple to rework	Moderate chemical and solvent resistance
Urethane	UR	The other workhorse. Excellent chemical and solvent resistance, good moisture protection	Harder to rework, longer cure
Silicone	SR	Wide temperature range and flexibility for specialized environments	Lower abrasion and solvent resistance, higher cost
Epoxy	ER	Hard, durable, film	Difficult to rework, can stress components during thermal cycling
Parylene	XY	Vapor-deposited, pinhole-free, uniform coverage on complex geometries. Applied in extremely thin layers that add almost no weight, which makes it the choice where weight matters, such as aerospace, medical and miniaturized assemblies	Specialized process, higher cost, extensive masking, difficult rework
UV-curable	Varies by base chemistry	Cures in seconds under UV light, which speeds throughput and shortens turn time	Needs UV lamp equipment, and shadowed areas under components may require a secondary moisture or heat cure

Recommended coating thickness varies by material chemistry, manufacturer specifications and application requirements. The appropriate thickness should be established during process planning and documented in the manufacturing requirements.

How Conformal Coating Is Applied

Application method affects consistency, throughput and cost.

Manual brush or aerosol spray — suited to low volumes and touch-up, with results that depend heavily on operator skill.
Dip coating — covers the whole assembly quickly and works for high volumes, though masking requirements increase.
Automated selective coating — a programmed robot dispenses material only where it is needed, with repeatable thickness and clean boundaries around connectors and keep-out areas. This method suits most production programs.
Vapor deposition — used for parylene, where the coating forms molecule by molecule in a vacuum chamber.

Cure method is the other half of the process. Depending on the material, coatings cure at room temperature, with heat, under UV light or through moisture reaction, and cure time directly influences turn time.

The Conformal Coating Process, Step by Step

Clean the assembly. Flux residue and ionic contamination interfere with adhesion and can trap corrosive material under the film, so cleaning before coating is a core process step.
Bake out moisture where the design calls for it, so no trapped moisture is sealed under the coating.
Mask keep-out areas. Connectors, switches, test points, sockets, heat-sink interfaces and adjustable components need to stay uncoated.
Apply the coating with the selected method and verify thickness.
Cure according to the material specification.
Inspect. Many conformal coatings contain a UV tracer that allows inspectors to verify coverage and identify potential defects such as voids, bubbles and insufficiently coated areas. Coating thickness is verified using an appropriate measurement method, while workmanship is evaluated against applicable IPC-A-610 acceptance criteria and customer specifications.
Test. Test before and after coating. Functional testing is typically completed before coating to identify defects while the assembly remains accessible for troubleshooting and rework. Depending on customer requirements and product complexity, additional functional testing may be performed after coating and curing to verify that the process has not affected electrical performance.

Designing for Conformal Coating

Coating cost and quality are largely set during layout. A few early decisions pay off on the production floor:

Define keep-out zones in the design files. Clearly marked areas for connectors, test points and mechanical interfaces allow automated selective coating to run without manual masking.
Leave clearance around keep-out areas. Selective dispensing needs a margin so material stays where it belongs.
Watch tall components. Large parts can shadow adjacent components during spray application and leave thin or uncovered spots.
Plan test access around coating. Placing test points in designated keep-out areas keeps probing possible after coating.
Match the coating to the rework plan. Acrylics remove readily with solvent. Epoxies and parylene make rework far more demanding, which affects repair cost over the life of the program.
Confirm material compatibility. Flux chemistry, cleaning process and coating need to work together to achieve reliable adhesion.

Keeping Coating Cost Low When Coating Is Required

For many programs, coating is a requirement set by the application. The goal then becomes applying it as efficiently as possible. Selective automated coating reduces material use and eliminates most manual masking. Consistent keep-out definitions across board revisions save programming time. Grouping coating with other cure-dependent processes shortens overall turn time. Specifying the coating type and thickness range on the drawing from the start avoids quote revisions and rework later.

Common Coating Defects and How to Avoid Them

Dewetting and fisheyes — usually caused by surface contamination, which proper cleaning prevents.
Bubbles and voids — often traced to application speed, material viscosity or trapped moisture.
Thin coverage on sharp edges and component corners — managed through application technique and verified under UV inspection.
Cracking and delamination — tied to material selection and cure, particularly in thermal cycling environments.
Coating on keep-out areas — prevented through accurate masking or programmed selective patterns.

Conformal Coating at ACDi

ACDi applies conformal coating as part of its PCB assembly services, with coating integrated into the same inspection and test flow as the rest of the build. Keeping coating under the same roof as assembly and test shortens quote turnaround, keeps accountability with one team, and allows coating requirements to be reviewed for manufacturability alongside the rest of the design. Learn more in our considerations for conformal coating overview.

Get Coating Right from the Start

With more than 40 years of electronics manufacturing experience, ACDi understands how design decisions affect production efficiency, product reliability and long-term performance. Our team works with customers to evaluate conformal coating services requirements as part of the overall PCB assembly process.
